Lamilux PR-60
Applications

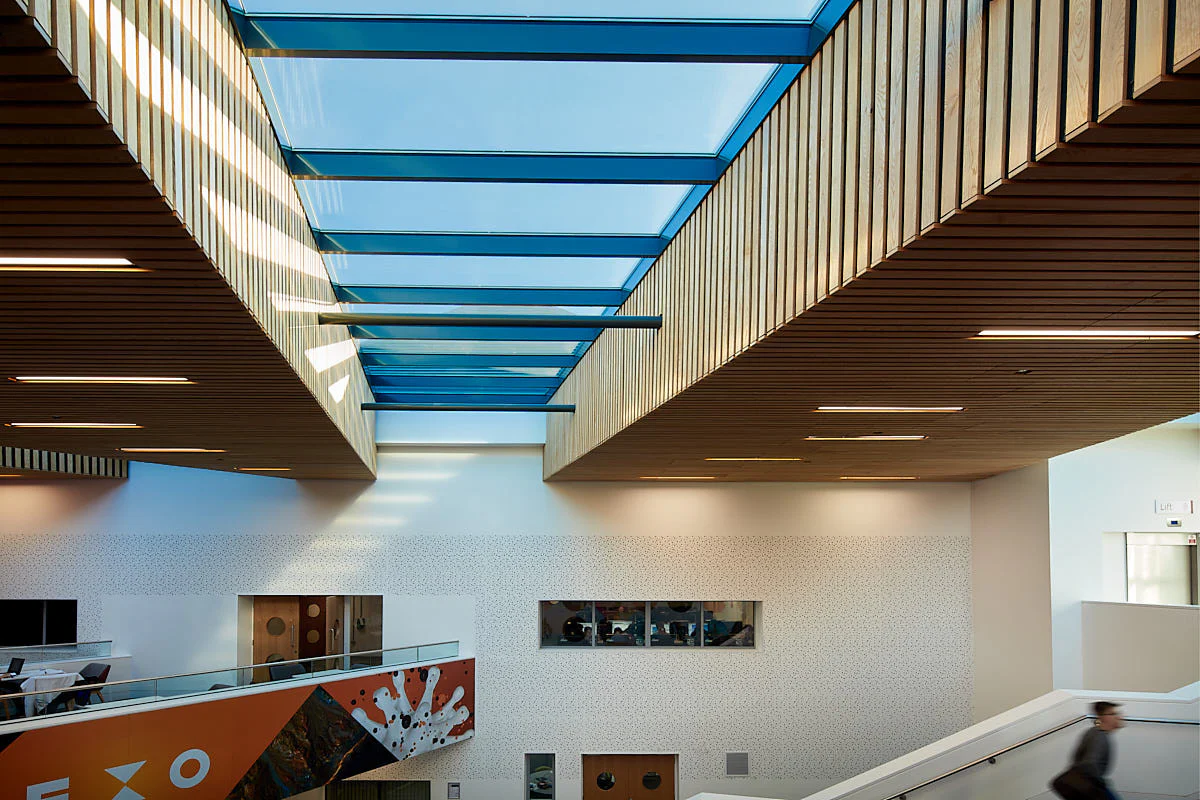

High performance glass roof system. Includes insulated glazing, thermally broken aluminum profiles, and insulated flashing connections to the existing structure.
Advantages
- Structural profiles made of rigid aluminium capable of spanning greater than 20’
- Practically no design constraints between 2° to 90°
- Thermally continuous assembly minimizes risk of condensation
- Efficient ventilation of glass
- Controlled water and condensate draining
Properties
- Roof safety with water tightness against driving rain, airtightness and resistance to wind load (2000 Pa permissible load and 3000 Pa increased load)
- Heat transfer coefficient of the jambs and transoms (Um/t) have a U-value of 0.23 to 0.13 (Btu/hr-ft2-F) (depending on glazing thickness)
- Surface temperature factor fRSi of 0.66 to 0.83 (depending on glazing thickness)
- Soundproofing demonstrated in system test in as-installed state as per EN 10140-2 up to 46 dB
Select Custom
From $9,270.00
Original: $30,900.00
-70%Lamilux PR-60—
$30,900.00
$9,270.00
Description
Applications
High performance glass roof system. Includes insulated glazing, thermally broken aluminum profiles, and insulated flashing connections to the existing structure.
Advantages
- Structural profiles made of rigid aluminium capable of spanning greater than 20’
- Practically no design constraints between 2° to 90°
- Thermally continuous assembly minimizes risk of condensation
- Efficient ventilation of glass
- Controlled water and condensate draining
Properties
- Roof safety with water tightness against driving rain, airtightness and resistance to wind load (2000 Pa permissible load and 3000 Pa increased load)
- Heat transfer coefficient of the jambs and transoms (Um/t) have a U-value of 0.23 to 0.13 (Btu/hr-ft2-F) (depending on glazing thickness)
- Surface temperature factor fRSi of 0.66 to 0.83 (depending on glazing thickness)
- Soundproofing demonstrated in system test in as-installed state as per EN 10140-2 up to 46 dB
