ROFLEX SOLIDO 50

Applications

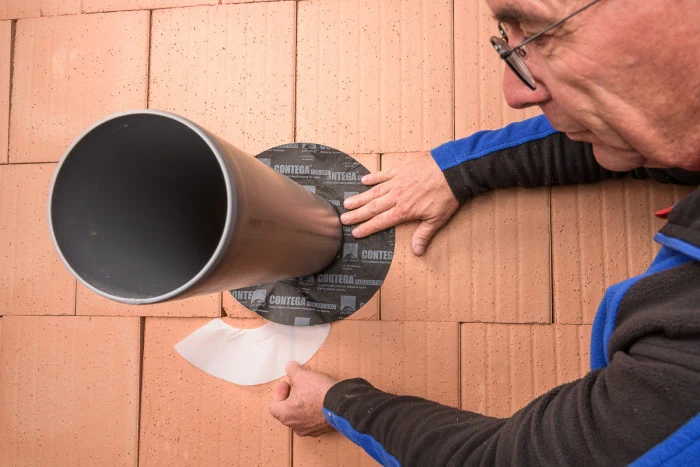

ROFLEX SOLIDO^® are highly flexible EPDM gaskets for air sealing and waterproofing round pipes and ducts. Quick, easy and adaptable sealing of perpendicular pipe penetrations. ROFLEX SOLIDO includes CONTEGA SOLIDO EXO tape for reliable waterproofing and adhesion to all common building materials and Pro Clima membranes.

Advantages

• Airtight sleeves made from EPDM with built-in SOLIDO acrylic adhesive (CONTEGA SOLIDO EXO)
• Split release paper for fast and secure application
• Creates instant, airtight connections to round ducts and pipes that enter through airtight membranes, vapor retarders and WRBs
• Pre-cut hole in flexible EPDM saves time
• Forms tight fitting sleeve, without causing a protruding bulge (saving space)
• CONTEGA SOLIDO EXO adheres to concrete, masonry without primer and can be plastered over
• Pipe remains adjustable after installation- the joint remains sealed
• Excellent values for IAQ, low VOC per AgBB/ISO 16000

Substrates

• Exceptional bonding to masonry, concrete, CMU solid wood, and all Pro Clima membranes
• Adheres to many porous, rough and uneven substrates without primer
• Perform and adhesion test to confirm suitability of substrate
• For straight pipe penetrations, in case of acute pipe angles (>3:12) use ROFLEX gaskets

Properties

• Penetrations: for one pipe pass-throughs
• Material: EPDM rubber gasket with built-in CONTEGA SOLIDO EXO solid acrylic adhesive tape
• UV/Weather exposure: 3 months
• For air-tight sealing according DIN 4108-7 (ACH50 < 1.5)
